Improving Tomix "Second Generation" mechanisms (part 2)

In a previous entry, Improving Tomix "Second Generation" mechanisms, I provided a suggestion to improve the mechanism of these models by applying tape to the worm gear case to stop it vibrating against the chassis.

A year older and wiser, I've since discovered that while this mitigates the underlying issue somewhat, it's not a particularly effective solution.

The underlying issue, it turns out, is the interaction between worm gear and worm gear case - without sufficient lubrication, the worm gear will cause the case to vibrate, and sometimes "stick" slightly, causing the car to stutter, and possibly put more strain on the motor/and or cause a higher current draw than it should do.

The solution is simple, effective and obvious: lubricate the interface between worm gear and worm gear case.

Tomix worm gear box lubrication

Using a toothpick/cocktail stick I applied dabs of grease to the "tunnels" on inside of the case (above right) and to the worm gear itself one either end where it rotates against the case. Excess can be remove with the toothpick, and wiped on the exposed part of the worm gear (though this really doesn't need much lubrication).

Before doing that however, it's worth cleaning both worm gear and the case, to remove any existing grease/oil residue, and in the case of the worm gear, remove any built-up fibre which may have ended up wrapped around it (quite common with second-hand stock, and something I evidently missed last time).




Wednesday, July 31, 2019  12:09 AM

Steam locomotives on static display in the Tokyo area

An ad-hoc, incomplete list of preserved steam locomotives on static display within the 23 wards area of Tokyo:




Posted in Rail | add a comment


Saturday, June 29, 2019  11:49 AM

Tomix World to reopen in Tokyo next to Kanda station

It's just been announced that Tomix World, formerly located in Omiya and which closed in early 2019, will be reopening on Saturday July 27th at its new location close to Kanda Station in Tokyo.

The new address is: Kanda IK Building 7F, 2-7-1 Kajimachi, Chiyoda-ku, Tokyo (東京都千代田区鍛冶町2丁目7-1 神田IKビル7F); Google Street View link.

The Tomix World website contains more details (at the time of writing in Japanese only).






Saturday, June 29, 2019  12:28 AM

BR485 / BR885

Flickr album with a bunch of pictures: DB 485 005 bis 885 709

Model by Roco:

Roco ET85 (BR 485)

Posted in Rail | add a comment


Sunday, April 7, 2019   2:35 AM

Tomix N Gauge EF81 (EF81-15)

Tomix N gauge model (Tomix catalogue number 2194) of a JR EF81 Bo-Bo-Bo dual voltage (AC/DC) electric locomotive.

This is a limited edition model released in ca. 2009.

Pictures

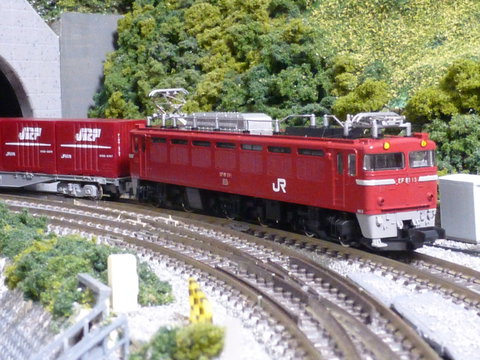

Tomix EF81-15
